Custom Properties

When building AI applications, you often need to track and analyze requests by different dimensions like project, feature, or workflow stage. Custom Properties let you tag LLM requests with metadata, enabling advanced filtering, cost analysis per user or feature, and performance tracking across different parts of your application.

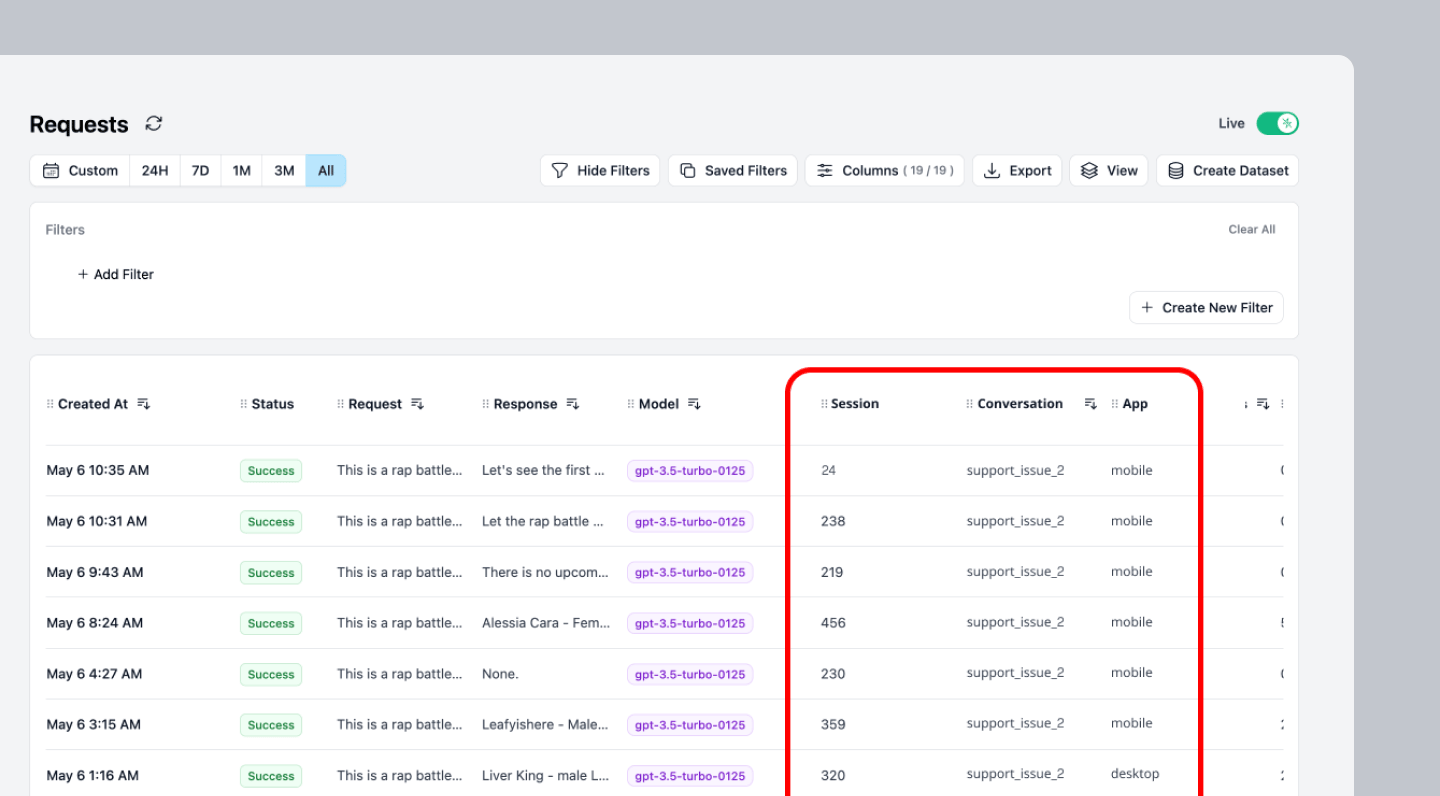

Helicone Custom Properties feature for filtering and segmenting data in the Request table. — Custom Properties appear as headers in the `Request` table.

Why use Custom Properties

Track unit economics: Calculate cost per user, conversation, or feature to understand your application’s profitability
Debug complex workflows: Group related requests in multi-step AI processes for easier troubleshooting
Analyze performance by segment: Compare latency and costs across different user types, features, or environments

Quick Start

Use headers to add Custom Properties to your LLM requests.

Define the Header

Name your header in the format Helicone-Property-[Name] where Name is the name of your custom property.

Define the Value

The value is a string that labels your request for this custom property. Here are some examples:

import { OpenAI } from "openai";

const client = new OpenAI({
  baseURL: "https://ai-gateway.helicone.ai",
  apiKey: process.env.HELICONE_API_KEY,
  defaultHeaders: {
    "Helicone-Property-Conversation": "support_issue_2",
    "Helicone-Property-App": "mobile",
    "Helicone-Property-Environment": "production",
  },
});

const response = await client.chat.completions.create({
  model: "gpt-4o-mini",
  messages: [{ role: "user", content: "Hello, how are you?" }]
});

from openai import OpenAI

client = OpenAI(
    base_url="https://ai-gateway.helicone.ai",
    api_key=os.getenv("HELICONE_API_KEY"),
    default_headers={
        "Helicone-Property-Conversation": "support_issue_2",
        "Helicone-Property-App": "mobile",
        "Helicone-Property-Environment": "production",
    }
)

response = client.chat.completions.create(
    model="gpt-4o-mini",
    messages=[{"role": "user", "content": "Hello, how are you?"}]
)

curl https://ai-gateway.helicone.ai/chat/completions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $HELICONE_API_KEY" \
  -H "Helicone-Property-Conversation: support_issue_2" \
  -H "Helicone-Property-App: mobile" \
  -H "Helicone-Property-Environment: production" \
  -d '{
    "model": "gpt-4o-mini",
    "messages": [
      {
        "role": "user",
        "content": "Hello, how are you?"
      }
    ]
  }'

from langchain_openai import ChatOpenAI

llm = ChatOpenAI(
    openai_api_key="<HELICONE_API_KEY>",
    openai_api_base="https://ai-gateway.helicone.ai",
    model_name="gpt-4o-mini",
    default_headers={
        "Helicone-Property-Type": "Course Outline"
    }
)

course = llm.predict("Generate a course outline about AI.")

# Update helicone properties/headers for each request
llm.model_kwargs["headers"] = {
    "Helicone-Property-Type": "Lesson"
}

lesson = llm.predict("Generate a lesson for the AI course.")

Understanding Custom Properties

How Properties Work

Custom properties are metadata attached to each request that help you: What they enable:

Filter requests in the dashboard by any property
Calculate costs and metrics grouped by properties
Export data segmented by custom dimensions
Set up alerts based on property values

Use Cases

Environment & Deployment Tracking
Customer Support Bot

Track performance and costs across different environments and deployments:

import { OpenAI } from "openai";

const client = new OpenAI({
  baseURL: "https://ai-gateway.helicone.ai",
  apiKey: process.env.HELICONE_API_KEY,
});

// Production deployment
const response = await client.chat.completions.create(
  {
    model: "gpt-4o-mini",
    messages: [{ role: "user", content: "Process this customer request" }]
  },
  {
    headers: {
      "Helicone-Property-Environment": "production",
      "Helicone-Property-Version": "v2.1.0",
      "Helicone-Property-Region": "us-east-1"
    }
  }
);

// Staging deployment with different version
const testResponse = await client.chat.completions.create(
  {
    model: "gpt-4o-mini",
    messages: [{ role: "user", content: "Test new feature" }]
  },
  {
    headers: {
      "Helicone-Property-Environment": "staging",
      "Helicone-Property-Version": "v2.2.0-beta",
      "Helicone-Property-Region": "us-west-2"
    }
  }
);

// Compare performance and costs across environments

from openai import OpenAI
import os

client = OpenAI(
    base_url="https://ai-gateway.helicone.ai",
    api_key=os.environ.get("HELICONE_API_KEY"),
)

# Production request
response = client.chat.completions.create(
    model="gpt-4o-mini",
    messages=[{"role": "user", "content": "Process this customer request"}],
    extra_headers={
        "Helicone-Property-Environment": "production",
        "Helicone-Property-Version": "v2.1.0",
        "Helicone-Property-Region": "us-east-1"
    }
)

# Development request
dev_response = client.chat.completions.create(
    model="gpt-4o-mini",
    messages=[{"role": "user", "content": "Test prompt changes"}],
    extra_headers={
        "Helicone-Property-Environment": "development",
        "Helicone-Property-Version": "v2.2.0-dev",
        "Helicone-Property-Region": "local"
    }
)

Track support interactions by ticket ID and case details for debugging and cost analysis:

// Initial customer inquiry
const response = await client.chat.completions.create(
  {
    model: "gpt-4o-mini",
    messages: [
      { role: "system", content: "You are a helpful customer support agent." },
      { role: "user", content: "My order hasn't arrived yet, what should I do?" }
    ]
  },
  {
    headers: {
      "Helicone-Property-TicketId": "TICKET-12345",
      "Helicone-Property-Category": "shipping",
      "Helicone-Property-Priority": "medium",
      "Helicone-Property-Channel": "chat"
    }
  }
);

// Follow-up question in same ticket
const followUp = await client.chat.completions.create(
  {
    model: "gpt-4o-mini",
    messages: [
      { role: "system", content: "You are a helpful customer support agent." },
      { role: "user", content: "Can you help me track the package?" }
    ]
  },
  {
    headers: {
      "Helicone-Property-TicketId": "TICKET-12345",
      "Helicone-Property-Category": "shipping",
      "Helicone-Property-Priority": "high",  // Escalated priority
      "Helicone-Property-Channel": "chat"
    }
  }
);

// Track costs per ticket, debug issues by category, analyze resolution patterns

Configuration Reference

Header Format

Custom properties use a simple header-based format:

string

Any custom metadata you want to track. Replace [Name] with your property name.Example: Helicone-Property-Environment: staging

string

Special reserved property for user tracking. Enables per-user cost analytics and usage metrics. See User Metrics for detailed tracking capabilities.Example: Helicone-User-Id: user-123

Advanced Features

Updating Properties After Request

You can update properties after a request is made using the REST API:

// Get the request ID from the response
const { data, response } = await client.chat.completions
  .create({ /* your request */ })
  .withResponse();

const requestId = response.headers.get("helicone-id");

// Update properties via API
await fetch(`https://api.helicone.ai/v1/request/${requestId}/property`, {
  method: "PUT",
  headers: {
    "Authorization": `Bearer ${HELICONE_API_KEY}`,
    "Content-Type": "application/json"
  },
  body: JSON.stringify({
    "Environment": "production",
    "PostProcessed": "true"
  })
});

Querying by Custom Properties

Once you’ve added custom properties to your requests, you can filter and retrieve requests using those properties via the Query API.

Important: When filtering by custom properties, you MUST wrap the properties filter inside a request_response_rmt object. Omitting this wrapper will return empty results.

Simple Property Filter

Filter requests by a single property value:

curl --request POST \
  --url https://api.helicone.ai/v1/request/query-clickhouse \
  --header "Content-Type: application/json" \
  --header "authorization: Bearer $HELICONE_API_KEY" \
  --data '{
  "filter": {
    "request_response_rmt": {
      "properties": {
        "Environment": {
          "equals": "production"
        }
      }
    }
  },
  "limit": 100
}'

Multiple Property Filters

Combine multiple property filters using AND/OR operators:

curl --request POST \
  --url https://api.helicone.ai/v1/request/query-clickhouse \
  --header "Content-Type: application/json" \
  --header "authorization: Bearer $HELICONE_API_KEY" \
  --data '{
  "filter": {
    "left": {
      "request_response_rmt": {
        "properties": {
          "Environment": {
            "equals": "production"
          }
        }
      }
    },
    "operator": "and",
    "right": {
      "request_response_rmt": {
        "properties": {
          "App": {
            "equals": "mobile"
          }
        }
      }
    }
  },
  "limit": 100
}'

Combining Properties with Other Filters

Filter by properties AND other criteria like date range or model:

curl --request POST \
  --url https://api.helicone.ai/v1/request/query-clickhouse \
  --header "Content-Type: application/json" \
  --header "authorization: Bearer $HELICONE_API_KEY" \
  --data '{
  "filter": {
    "left": {
      "request_response_rmt": {
        "request_created_at": {
          "gte": "2024-01-01T00:00:00Z"
        }
      }
    },
    "operator": "and",
    "right": {
      "request_response_rmt": {
        "properties": {
          "Conversation": {
            "equals": "support_issue_2"
          }
        }
      }
    }
  },
  "limit": 100
}'

Common Mistake

❌ WRONG - Properties without request_response_rmt wrapper

# This will return empty results even if data exists
curl --request POST \
  --url https://api.helicone.ai/v1/request/query-clickhouse \
  --header "Content-Type: application/json" \
  --header "authorization: Bearer $HELICONE_API_KEY" \
  --data '{
  "filter": {
    "properties": {
      "Environment": {
        "equals": "production"
      }
    }
  }
}'

✅ CORRECT - Properties with request_response_rmt wrapper

# This will correctly return filtered results
curl --request POST \
  --url https://api.helicone.ai/v1/request/query-clickhouse \
  --header "Content-Type: application/json" \
  --header "authorization: Bearer $HELICONE_API_KEY" \
  --data '{
  "filter": {
    "request_response_rmt": {
      "properties": {
        "Environment": {
          "equals": "production"
        }
      }
    }
  }
}'

See the full Query API documentation for more advanced filtering options.

User Metrics

Track per-user costs and usage with the special Helicone-User-Id property

Sessions

Group related requests with Helicone-Session-Id for workflow tracking

Webhooks

Filter webhook deliveries based on custom property values

Alerts

Set up alerts triggered by specific property combinations
